Inheritance diagram for com.hobby.smart.bluetoothcomm.BltManager:

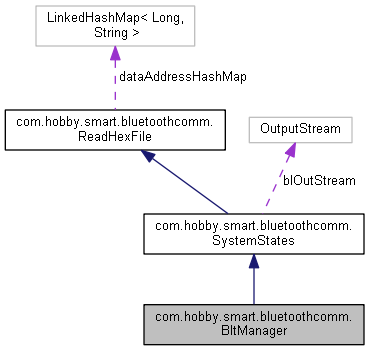

Collaboration diagram for com.hobby.smart.bluetoothcomm.BltManager:
Public Member Functions | |
| BltManager () | |
| BltManager (Context cnt) | |
| void | enableBluetooth () |
| void | openBluetooth (BluetoothDevice device) throws IOException |
| void | closeBluetooth () |
| void | listenForData () |
| void | sendData (byte data) |
| ArrayAdapter< BluetoothDevice > | getmAdapter () |
| ArrayAdapter< String > | getmAdapterList () |
| BluetoothAdapter | getmBluetoothAdapter () |
 Public Member Functions inherited from com.hobby.smart.bluetoothcomm.SystemStates | |
| void | runStateMachine (int currentState) |
| void | resetBinaryFileData () |
| void | sendHeader () throws IOException |
| void | sendBinary () throws IOException |
| void | setOutputStream (OutputStream mmOutStream) |
| void | sendData (int data) |
| Public Member Functions inherited from com.hobby.smart.bluetoothcomm.ReadHexFile | |
| void | readHex (String path) throws IOException |
| void | setStartEndPICFlashAddress (long strt, long end) |
| int | getFileStartIndex () |
| int | getFileEndIndex () |
| long | getStartAddress () |
| int | getTotalNumberOfPackets () |
| void | craeteBinData () |
| byte [] | getFileData () |
Additional Inherited Members | |
| Static Public Attributes inherited from com.hobby.smart.bluetoothcomm.SystemStates | |
| static final int | SYS_CONFIG_CMND = 0x01 |
| static final int | SYS_SEND_FIRMWARE_HEADER = 0x02 |
| static final int | SYS_FIRMWARE_HEADER_POS_ACK = 0x03 |
| static final int | SYS_FIRMWARE_HEADER_NEG_ACK = 0x04 |
| static final int | SYS_SEND_CHUNK = 0x05 |
| static final int | SYS_ADDRESS_RANGE_RCV = 0x06 |
| static final int | SYS_ADDRESS_RANGE_RQT = 0x07 |
Detailed Description
Created by Mallikarjun Tirlapur on 20-06-2016. BltManager class inherits the properties of class SystemStates. The class establishes the bluetooth communication link. CExchanges command with the PIC
Constructor & Destructor Documentation
◆ BltManager() [1/2]
| com.hobby.smart.bluetoothcomm.BltManager.BltManager | ( | ) |
default empty constructor
◆ BltManager() [2/2]
| com.hobby.smart.bluetoothcomm.BltManager.BltManager | ( | Context | cnt | ) |
Constructor initializes all the instances decalred in the class
Member Function Documentation
◆ closeBluetooth()
| void com.hobby.smart.bluetoothcomm.BltManager.closeBluetooth | ( | ) |
Function closes the Bluettoth port and cuts the link
Here is the caller graph for this function:
◆ enableBluetooth()
| void com.hobby.smart.bluetoothcomm.BltManager.enableBluetooth | ( | ) |
Function enables the Bluettoth
Here is the caller graph for this function:
◆ listenForData()
| void com.hobby.smart.bluetoothcomm.BltManager.listenForData | ( | ) |
Function defines the thread which listens data from the PIC
Here is the call graph for this function:
Here is the caller graph for this function:
◆ openBluetooth()
| void com.hobby.smart.bluetoothcomm.BltManager.openBluetooth | ( | BluetoothDevice | device | ) | throws IOException |
Function Opens the Bluettoth port and establishes communication link

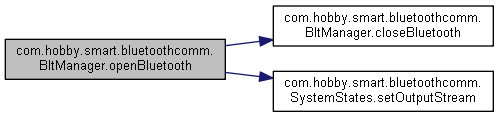

Here is the call graph for this function:
Here is the caller graph for this function:
◆ sendData()
| void com.hobby.smart.bluetoothcomm.BltManager.sendData | ( | byte | data | ) |
Function is called to send the data to PIC
- Parameters
-
data data tobe sent out to PIC
Here is the caller graph for this function:
The documentation for this class was generated from the following file:
- E:/BluetoothComm/app/src/main/java/com/hobby/smart/bluetoothcomm/BltManager.java
