system.h File Reference

The functions are declared and defined state enumerations. More...

#include <xc.h>
#include <p18f4431.h>
#include <string.h>
#include <stdlib.h>

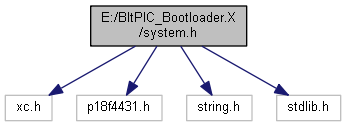

Include dependency graph for system.h:

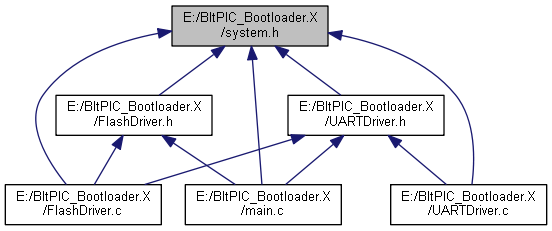

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	NVM_ROW_SIZE   8
#define	NVM_PAGE_SIZE   64
#define	NVM_START_ADDRESS   0x00
#define	NVM_END_ADDRESS   0x3fff

Typedefs
typedef unsigned char	uint8_t
typedef unsigned short	uint16_t
typedef unsigned long	uint32_t
typedef enum SYSTEM_STATUS_Tag	SYS_STATE_t
	Enumeral represents different system states.
typedef enum SYSTEM_COM_PROTOCOL_MSG_Tag	SYS_COM_PROTOCL_MSG_t
	Enumeral represents handshaking signals between programmer and controller.

Enumerations
enum	SYSTEM_STATUS_Tag {   SYS_WAIT_FOR_START_CMND, SYS_CONFIG_FLASH, SYS_RCV_FIRMWARE_HEADER, SYS_FIRMWARE_UPDATE,   SYS_RUN_APPLCN, SYS_SND_ADDRS_RANGE }
	Enumeral represents different system states. More...
enum	SYSTEM_COM_PROTOCOL_MSG_Tag {   SYS_START_CMND_FROM_PROGRMR = 0x01, SYS_READY_FOR_FIRMWARE_HEADER, SYS_FIRMWARE_HEADER_POS_ACK, SYS_FIRMWARE_HEADER_NEG_ACK,   SYS_SND_NXT_CHUNK, SYS_ADDRESS_RANGE_TAG, SYS_ADDRESS_RANGE_RQT }
	Enumeral represents handshaking signals between programmer and controller. More...

Functions
void	runStateMachine (void)
	function executes different states of the system. SYS_SND_ADDRS_RANGE - Send the PIC programmable start and end address of the program memory SYS_WAIT_FOR_START_CMND - The Start command triggers system to start the process and initializes buffer counter SYS_RCV_FIRMWARE_HEADER - Get the total packet count from the host and applcn start address SYS_CONFIG_FLASH - Erase application program area and update table pointer SYS_FIRMWARE_UPDATE - Receive and put the binary chunks in the flash memory SYS_RUN_APPLCN - Run the application
void	initVarConfigPort (void)
	function configures and initializes IO ports.
void	runApplcn (void)
	PC is updated with the new pointer to execute loaded binary from the application flash program memory.

Variables
uint16_t	applStartAdd
uint8_t	totalNumberOfPacckets
uint8_t	progMemRange []

Detailed Description

The functions are declared and defined state enumerations.

Author

Mallikarjun Tirlapur

Date

16 May, 2016

Macro Definition Documentation

NVM_END_ADDRESS

#define NVM_END_ADDRESS   0x3fff

NVM end adress.

NVM_PAGE_SIZE

#define NVM_PAGE_SIZE   64

NVM each page size 64 bytes.

NVM_ROW_SIZE

#define NVM_ROW_SIZE   8

NVM each row size 8 bytes.

NVM_START_ADDRESS

#define NVM_START_ADDRESS   0x00

NVM start adress.

Typedef Documentation

uint16_t

typedef unsigned short uint16_t

typedef for unsigned short.

uint32_t

typedef unsigned long uint32_t

typedef for unsigned long.

uint8_t

typedef unsigned char uint8_t

typedef for unsigned char.

Enumeration Type Documentation

SYSTEM_COM_PROTOCOL_MSG_Tag

enum SYSTEM_COM_PROTOCOL_MSG_Tag

Enumeral represents handshaking signals between programmer and controller.

Enumerator
SYS_START_CMND_FROM_PROGRMR	Config command signal from the programmer.
SYS_READY_FOR_FIRMWARE_HEADER	Ready for firmware header signal sent to the programmer.
SYS_FIRMWARE_HEADER_POS_ACK	Firmware header positive acknowledgement.
SYS_FIRMWARE_HEADER_NEG_ACK	Firmware header negative acknowledgement.
SYS_SND_NXT_CHUNK	send next chunk signal.
SYS_ADDRESS_RANGE_TAG	send address with this tag.
SYS_ADDRESS_RANGE_RQT	Rquest for the address from the host.

SYSTEM_STATUS_Tag

enum SYSTEM_STATUS_Tag

Enumeral represents different system states.

Enumerator
SYS_WAIT_FOR_START_CMND	State where system waits for a start command from the programmer.
SYS_CONFIG_FLASH	State where system configs flash
SYS_RCV_FIRMWARE_HEADER	State where system waits for firmware header from the programmer
SYS_FIRMWARE_UPDATE	State where system loads the binary into the NVM
SYS_RUN_APPLCN	State where system jumps to the application
SYS_SND_ADDRS_RANGE	State where the system sends the PIC programmable start and end address of the program memory

Variable Documentation

applStartAdd

uint16_t applStartAdd

Application start address.

progMemRange

uint8_t progMemRange[]

Initial value:

= {SYS_ADDRESS_RANGE_TAG, NVM_PAGE_SIZE,
                         (uint8_t)((NVM_END_ADDRESS & 0xff000000) >> 24),
                         (uint8_t)((NVM_END_ADDRESS & 0x00ff0000) >> 16),
                         (uint8_t)((NVM_END_ADDRESS & 0x0000ff00) >> 8),
                         (uint8_t)(NVM_END_ADDRESS & 0x000000ff),
                         (uint8_t)((NVM_START_ADDRESS & 0xff000000) >> 24),
                         (uint8_t)((NVM_START_ADDRESS & 0x00ff0000) >> 16),
                         (uint8_t)((NVM_START_ADDRESS & 0x0000ff00) >> 8),
                         (uint8_t)(NVM_START_ADDRESS & 0x000000ff)}

totalNumberOfPacckets

uint8_t totalNumberOfPacckets

Variable holds the (size of the firmware/64) in bytes.
