The functions are declared and defined state enumerations. More...

#include <p32xxxx.h>
#include <string.h>
#include <stdlib.h>
#include <sys/attribs.h>

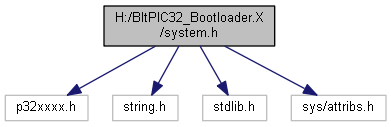

Include dependency graph for system.h:

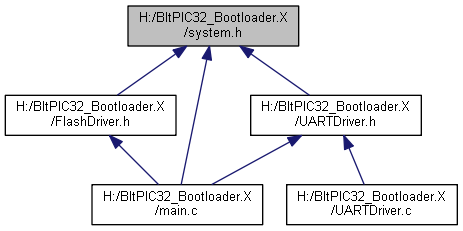

This graph shows which files directly or indirectly include this file:

Macros
#define	NVM_PAGE_SIZE 1024

#define	BYTE_PAGE_SIZE (4 * PAGE_SIZE)

#define	ROW_SIZE 128

#define	BYTE_ROW_SIZE (4 * ROW_SIZE)

#define	NUM_ROWS_PAGE 8

#define	APP_FLASH_BASE_ADDRESS 0x9D006000

#define	APP_FLASH_END_ADDRES 0x9D00FFFF

Typedefs
typedef unsigned char	uint8_t

typedef unsigned short	uint16_t

typedef unsigned long	uint32_t

typedef unsigned int	uint_t

typedef enum SYSTEM_STATUS_Tag	SYS_STATE_t
	Enumeral represents different system states.

typedef enum SYSTEM_COM_PROTOCOL_MSG_Tag	SYS_COM_PROTOCL_MSG_t
	Enumeral represents handshaking signals between programmer and controller.

Enumerations
enum	SYSTEM_STATUS_Tag { SYS_WAIT_FOR_START_CMND, SYS_CONFIG_FLASH, SYS_RCV_FIRMWARE_HEADER, SYS_FIRMWARE_UPDATE, SYS_RUN_APPLCN, SYS_SND_ADDRS_RANGE }
	Enumeral represents different system states. More...

enum	SYSTEM_COM_PROTOCOL_MSG_Tag { SYS_START_CMND_FROM_PROGRMR = 0x01, SYS_READY_FOR_FIRMWARE_HEADER, SYS_FIRMWARE_HEADER_POS_ACK, SYS_FIRMWARE_HEADER_NEG_ACK, SYS_SND_NXT_CHUNK, SYS_ADDRESS_RANGE_TAG, SYS_ADDRESS_RANGE_RQT }
	Enumeral represents handshaking signals between programmer and controller. More...

Functions
void	runStateMachine (void)
	function executes different states of the system. SYS_SND_ADDRS_RANGE - Send the PIC programmable start and end address of the program memory SYS_WAIT_FOR_START_CMND - The Start command triggers system to start the process and initializes buffer counter SYS_RCV_FIRMWARE_HEADER - Get the total packet count from the host and applcn start address SYS_CONFIG_FLASH - Erase application program area and update table pointer SYS_FIRMWARE_UPDATE - Receive and put the binary chunks in the flash memory SYS_RUN_APPLCN - Run the application

void	initVarConfigPort (void)

void	runApplcn (void)
	PC is updated with the new pointer to execute loaded binary from the application flash program memory.

Variables
uint32_t	applStartAdd

uint8_t	totalNumberOfPacckets

Detailed Description

The functions are declared and defined state enumerations.

Author: Mallikarjun Tirlapur

Date: 16 May, 2016

Macro Definition Documentation

§ APP_FLASH_BASE_ADDRESS

#define APP_FLASH_BASE_ADDRESS 0x9D006000

NVM start adress.

§ APP_FLASH_END_ADDRES

#define APP_FLASH_END_ADDRES 0x9D00FFFF

NVM end adress.

Enumeration Type Documentation

§ SYSTEM_COM_PROTOCOL_MSG_Tag

enum SYSTEM_COM_PROTOCOL_MSG_Tag

Enumeral represents handshaking signals between programmer and controller.

Enumerator
SYS_START_CMND_FROM_PROGRMR	Config command signal from the programmer.
SYS_READY_FOR_FIRMWARE_HEADER	Ready for firmware header signal sent to the programmer.
SYS_FIRMWARE_HEADER_POS_ACK	Firmware header positive acknowledgement.
SYS_FIRMWARE_HEADER_NEG_ACK	Firmware header negative acknowledgement.
SYS_SND_NXT_CHUNK	send next chunk signal.
SYS_ADDRESS_RANGE_TAG	send address with this tag.
SYS_ADDRESS_RANGE_RQT	Rquest for the address from the host.

§ SYSTEM_STATUS_Tag

enum SYSTEM_STATUS_Tag

Enumeral represents different system states.

Enumerator
SYS_WAIT_FOR_START_CMND	State where system waits for a start command from the programmer.
SYS_CONFIG_FLASH	State where system configs flash
SYS_RCV_FIRMWARE_HEADER	State where system waits for firmware header from the programmer
SYS_FIRMWARE_UPDATE	State where system loads the binary into the NVM
SYS_RUN_APPLCN	State where system jumps to the application
SYS_SND_ADDRS_RANGE	State where the system sends the PIC programmable start and end address of the program memory

Variable Documentation

§ applStartAdd

uint32_t applStartAdd

Application start address.

§ totalNumberOfPacckets

uint8_t totalNumberOfPacckets

Variable holds the (size of the firmware/64) in bytes.
